UNITREE G1 Dex3-1 robotic hands (left + right) without tactile sensors

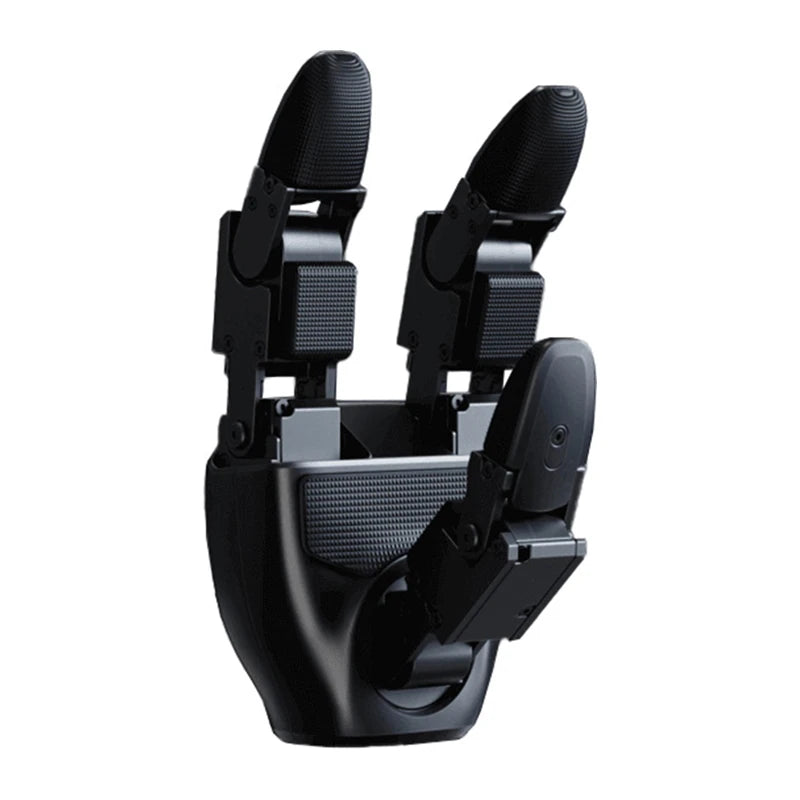

The UNITREE G1 Dex3-1 set includes a left and right three-fingered robotic hand designed to work with the UNITREE G1 humanoid robot. Each hand offers 7 degrees of freedom and utilizes 7 miniature brushless joints with force control. Hybrid force and position control allows for precise movement control, and the positioning repeatability of the fingertip is ±2 mm. Communication at a frequency of 1,000 Hz, a USB 2.0 interface, and a wide range of feedback data enable complex manipulations and precise control of the mechanism’s operation.

7 degrees of freedom for precise movement

Each Dex3-1 hand has three movable fingers—the thumb has 3 degrees of freedom, the index finger has 2, and the middle finger has another 2. The range of motion of each joint allows for complex grip configurations—for the thumb, it ranges from -60° to 60°, from -35° to 60°, and from 0° to 100°, while the joints of the index and middle fingers operate within ranges of 0° to 90° and 0° to 100°, respectively. This design allows the fingers to be repositioned in multiple planes and their arrangement to be adjusted to the task at hand. The positioning repeatability of the fingertip at ±2 mm further supports tasks requiring consistent movement reproduction.

Hybrid Force Control and Advanced Joints

The UNITREE Dex3-1 utilizes hybrid force and position control, meaning control is not limited solely to setting a specific finger position. The design of each hand includes 6 miniature, directly driven brushless force-control joints and 1 joint using a geared drive. The F-1515-108 and F-1515-214 models are used, and the system allows for the control of parameters such as torque, angle, angular velocity, stiffness, and damping. For the F-1515-108, the ideal maximum torque is 0.76 Nm, while the actual torque reaches 0.49 Nm in the direction of rotation and 1.37 Nm in the opposite direction. For the F-1515-214, these values are 1.498 Nm for ideal torque and 0.86 Nm and 3.1 Nm for actual torque, respectively.

Comprehensive Operational Feedback Data

The system provides a wide range of information regarding the current state of the mechanism. Sensing data includes the joint’s mode, position, velocity, torque, and temperature, as well as voltage, current, and IMU data. The control feedback also includes the joint’s stiffness and damping coefficients. This allows for precise monitoring of the hand’s behavior during task execution and the simultaneous use of multiple parameters during motion planning and control.

1000 Hz Communication and USB 2.0

The hand’s communication interface uses USB 2.0, and the communication frequency is 1000 Hz. A full data packet is 1,234 bytes on the transmit side and 1,270 bytes on the receive side. The joint control frequency is also 1,000 Hz, and High Speed Unibus is used for joint communication. These parameters provide access to a large amount of information about the hand’s status and enable frequent updates to control parameters during the execution of complex motion sequences.

Design tailored to the UNITREE G1 robot

A single hand weighs 710 g, and its dimensions when extended are 175 × 88 × 77 mm. Dex3-1 can work in conjunction with the UNITREE G1 humanoid robot and enables the performance of a variety of complex manipulative tasks. The mechanism’s compact dimensions are combined with an advanced motion control system and a feedback system, providing access to a wide range of data regarding the hand’s operation.
